User Menu
The User Menu in the upper right-hand corner of the 1Plan interface. It displays the current user name and options to open Settings, Layers and Help or to Log Out.
Settings
Click
to open the User Settings.
You can filter jobs that will display in 1Plan by Type.
You can also select which jobs to display based on status and priority. Job statuses that are not
ticked are not displayed.
Layers
Click
to choose predefined map layers.
These map layers are defined by an administrator
using the 1Plan administrator user interface.

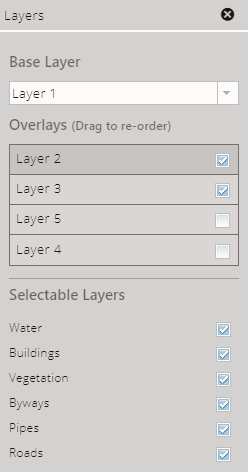

To use a Web Map Service (WMS) or Web Map Tile Service (WMTS) as a base
layer to display as background mapping, select it from the Base Layer
drop-down list.
Note: The Base Layer will display at 100% opacity.

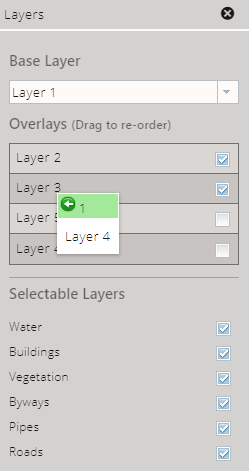

You can select your overlay layers using the Overlays available. To select multiple overlays, tick the box next to the those you want to display in the map view. You can also change the order in which the layers appear by dragging and dropping the Overlays into the desired order, this action can be seen in the screenshot below.
Note: The Overlay layers will display at 80% opacity.
To select one or more Selectable Layers, tick the box next to the name of the layer.
These layers define which features can be used when creating a new job extent by
selecting existing features.
To close the Layers panel and save your selections, click
.
