Road Features

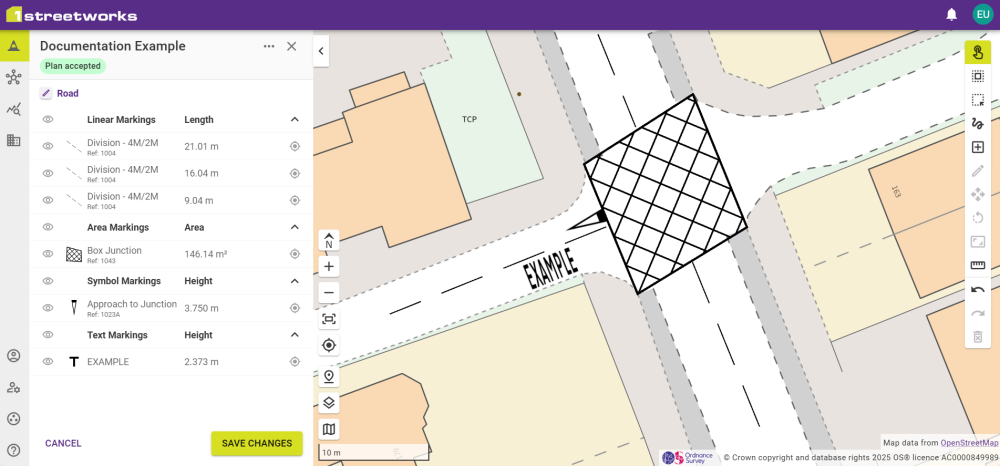

The Road tab allows road features and additional markings to be added directly onto the map in the plan. Adding road features is done in the same way as with editing or adding features. The Add Feature button gives access to the markings instead of works area features.

Marking Type	Description
Linear	Includes line markings such as carriageway divisions, stops, and zig-zags. Each can be edited after placement to align with road curvature.
Area	Creates an area for the marking to cover.
Symbol	Places the marking on the map at the specified bearing.
Text	Places text in the size and bearing selected.       Note: Uppercase letters, digits, and ()/& only.

After selecting a type, click on the map to place as necessary. These follow the same types of placement commands as similar features, and can be edited after placement.
