Service Configuration

The Service Configuration page can be reached by User with the System Manager Role via the Service Configuration section in the System tab.

Service Configuration allows 1Data Gateway's connection to 1Integrate to be configured and enabling 1Data Gateway for ArcGIS Pro settings.

1Integrate Server Settings

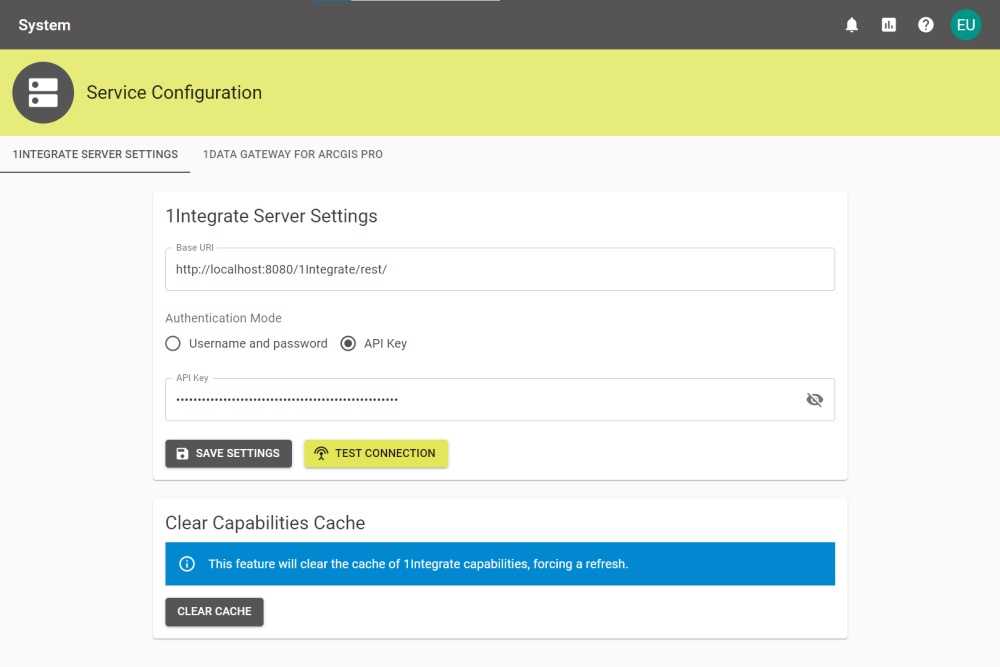

Service Config tab with the fields filled.

Parameter

Description

Base URI

The base path for your 1Integrate installation, usually a URL location.

Authentication Mode - Username and Password

Username

The Username for the 1Integrate server you are using.

Password

The Password for the 1Integrate server you are using.

Authentication Mode - API Key

API Key

The API Authentication Key for the 1Integrate server you are using.

      Note: If users will be making API calls please refer to 1Integrate Permissions below.

Input the connection details and use the Test Connection button to ensure the connection is valid, and then save with the Save Settings button. Testing the connection checks the compatibility of the 1Integrate version. A banner stating whether the 1Integrate version is compatible, untested or incompatible with 1Data Gateway will display.

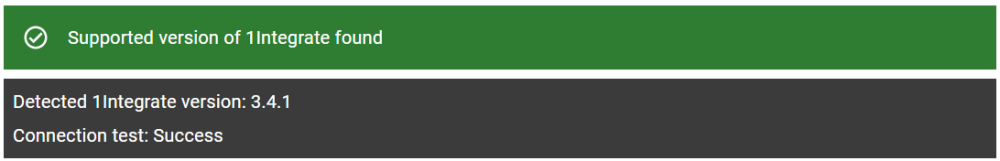

1Integrate test connection success banner with compatability details.

Closed1Integrate Permissions

The following permissions (roles) must be made available to the API Key used to authenticate 1Integrate:

1int-datastores-read, 1int-datastores-write, 1int-sessions-control, 1int-sessions-read, 1int-sessions-results, and 1int-sessions-write.

The group permissions 1int-user and 1int-admin both contain the required permissions but also contain permissions that are not necessary for 1Data Gateway.

For more information on 1Integrate permissions and APIs please refer to the 1Integrate Documentation.

ClosedClear Capabilities

The 1Integrate connection can be refreshed by clearing the Capabilities Cache.

Doing this means that any changes made in 1Integrate since the connection was first established are picked up upon reconnection.

Clear Capabilities Cache button and warning text.

For information on 1Integrate, please refer to the 1Integrate documentation.

1Data Gateway for ArcGIS Pro

To allow the use of 1Data Gateway for ArcGIS Pro in Specifications, the Enable 1Data Gateway for ArcGIS Pro settings box needs to be checked.

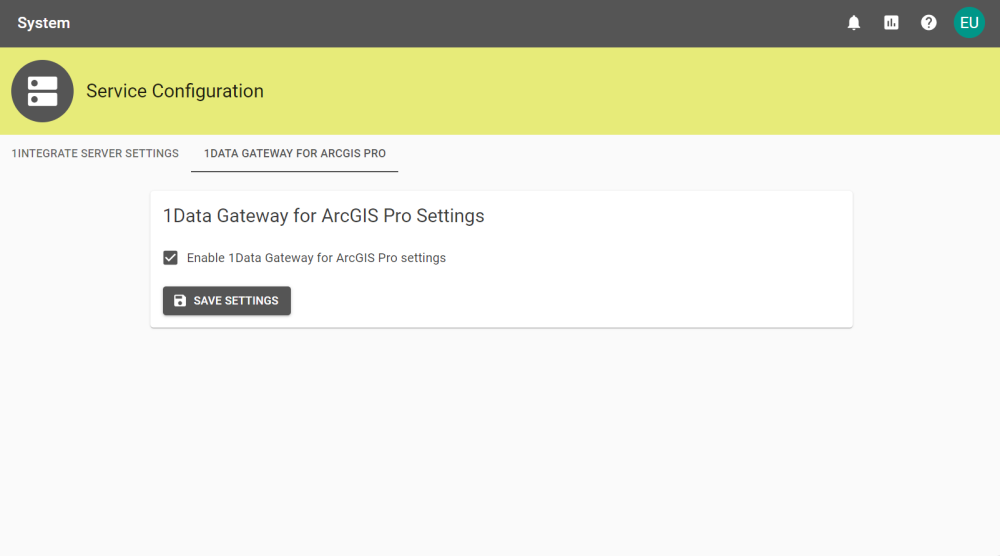

Service Config on the 1Data Gateway for ArcGIS Pro tab.
