Upper and Lower App Bars

Open the Upper and Lower App Bars by right-clicking with the mouse or swiping up from the bottom on a touch screen.

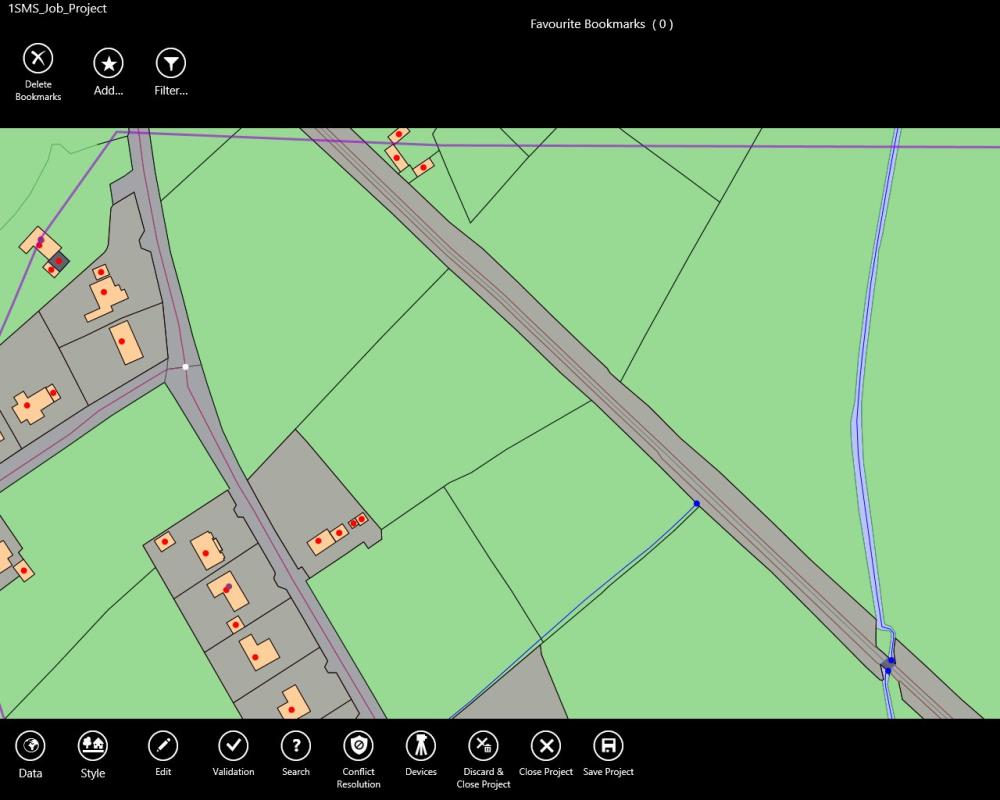

Upper and Lower App Bars

The menu options that are displayed depend on if a feature is currently selected, and if so, what type of feature is selected.

The Lower App Bar contains the following functionality:

  • Data - view your schema and topology information

  • Style - specify how the map is displayed

  • Edit - perform editing operations on the selected features

  • Validation - manage and run validation rules on your data

  • Search - search for data in the current project

  • Conflict Resolution - resolve conflicts in features

  • Devices - configure and use surveying devices

  • Discard & Close Project - close the session, discarding any changes made

  • Close Project - close and save the current session

  • Save Project - save the current session and clear the Undo/Redo list

  • Screengrab - take a screen shot of the Map Viewer, either to the clipboard or downloaded as a file

  • Help - opens the 1Edit documentation

  • Settings - opens the Settings panel on the right-hand side of the app

The Upper App Bar contains the following functionality:

  • Delete Bookmarks - delete an existing bookmark

  • Add Favourite - add a bookmark for the current map location

  • Filter Bookmarks - filter your view of bookmarks

     Note: You can swap the upper and lower app bars by opening Settings > 1Edit Settings from the Lower App Bar, and then enabling Flip App Bars. This can be useful when holding a tablet in a harness against your body to make the lower app bar more easily accessible.
