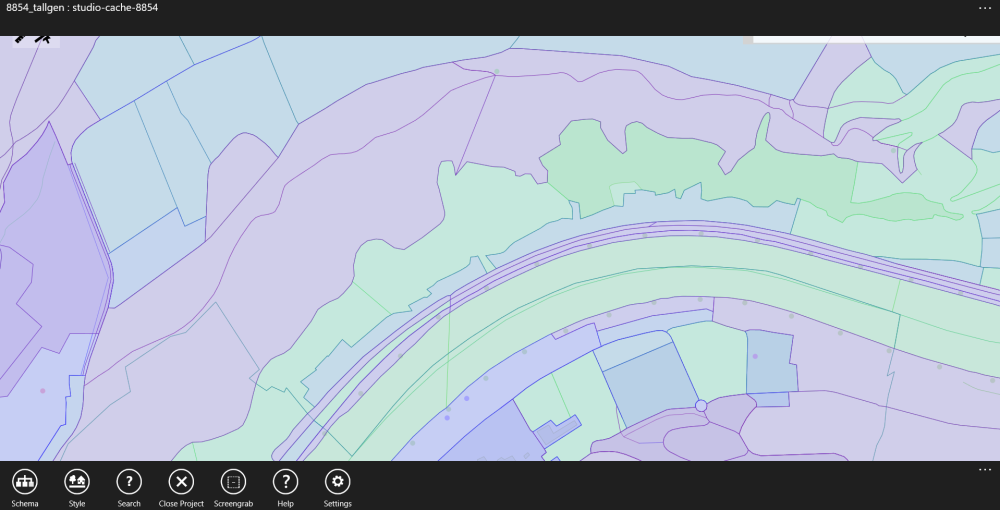

Upper and Lower App Bars

Open the Upper and Lower App Bars by right-clicking with the mouse or swiping up from the bottom on a touch screen.

The menu options that are displayed depend on if a feature is currently selected, and if so, what type of feature is selected.

The Lower App Bar contains the following functionality:

Schema - view your schema and topology information
Style - specify how the map is displayed
Search - search for data in the current project
Close Project - close and save the current session
Screengrab - take a screen shot of the Map Viewer, either to the clipboard or downloaded as a file
Help - opens the 1Edit documentation
Settings - opens the Settings panel on the right-hand side of the app

The Upper App Bar contains the Project name, and can be expanded/collapsed by clicking the ellipsis in the top right corner of the app.

Note: You can swap the upper and lower app bars by opening Settings > 1Edit Settings from the Lower App Bar, and then enabling Flip App Bars. This can be useful when holding a tablet in a harness against your body to make the lower app bar more easily accessible.
