Server-side Validation

When jobs are managed as part of the 1SMS Worklist, they are validated upon being submitted (see Lifecycle of a Job).

  • If the job fails validation, the job is marked as invalid and a child job is created to correct the validation error.

  • If the job passes validation, it continues its lifecycle.

Validation jobs (child jobs created when a job fails validation) contain additional bookmarks in, enabling you to view validation errors that need to be corrected.

     Note: Server Validation bookmarks can also be imported from a 1Integrate report file (see Validating Data).

Viewing Server Validation Bookmarks

Bookmarks and the Geometry Store are accessed from the Upper App Bar.

The App Bars are opened by right-clicking with the mouse or swiping up from the bottom on a touch screen. App bar menu options can change depending on the context or feature selected.

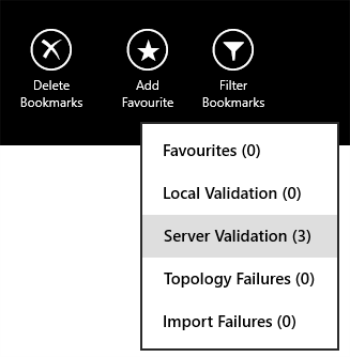

Filter to display Server Validation bookmarks by clicking on Filter Bookmarks and then selecting Server Validation.

Filtering to display Server Validation

Selecting a bookmark will zoom to the feature that failed validation. The exact failure of the feature will be displayed with a pushpin , enabling quick diagnosis and correction of the problem.

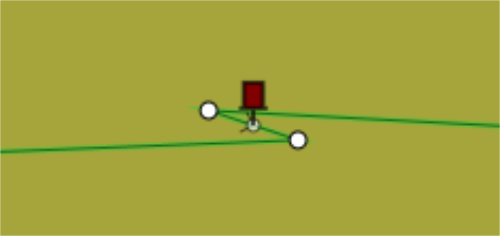

The following example highlights a "kickback" in a line feature.

An example "kickback"
