Feature Attributes

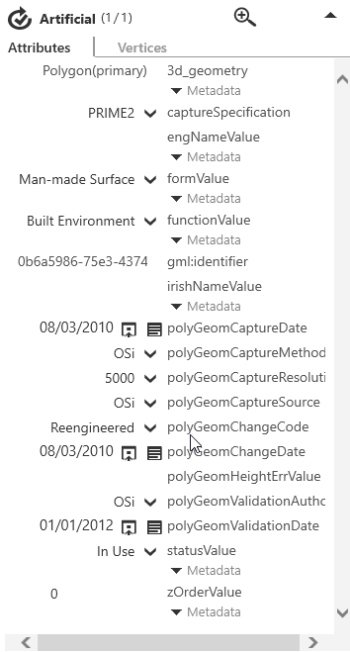

When you select a feature on the map, its attributes and the number of currently selected features are displayed in the Properties panel, within the Attributes tab. To zoom in on the selected feature, click .

You can expand and collapse the panel by clicking the expand/collapse arrow .

When the menu is collapsed, the top line of the properties panel is still visible so that you can see the class of the selected feature and access the buttons. The properties are not displayed, so that the map is not obscured.

Display Attribute Properties

Properties are collapsed by default but can be expanded/collapsed by clicking the expand and collapse arrows to show more information.

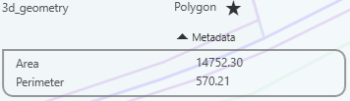

Geometry properties

‘3d_geometry’ is always the primary geometry for that feature. Clicking the expand/collapse arrow next to Metadata expands/collapses the measurements appropriate for that geometry type (e.g. length for a line geometry). The Add Geometry to Store button allows the addition of the geometry to the Geometry Store.

Simple properties

Property types such as strings, numbers, etc. are displayed as text next to attribute name. However, boolean properties are a tickbox, where empty is false and checked is true.

Reference properties

These contain a link to another feature. Click the link to select the referenced feature. Some references may be empty.
