Non-Spatial Filtering

In addition to restricting data load based on geometric filtering, you can restrict data load based on non-spatial expressions.

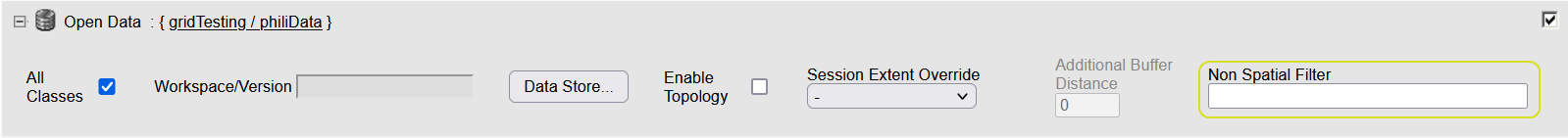

A Non-Spatial filter is configured within an open data task, with the filter having to be entered manually. Non-spatial filtering can also be applied to a Schema transform task, for more see Schema Transform.

Some examples of possible filters and further syntax information can be found below.

Note: The Non-Spatial filter works much like a SQL WHERE clause, though is syntactically different.

Note: Both {} and () can be used for filters. {} are recommended as it will allow differentiation between the filters and functions with the same name. e.g. NUMBER{} and NUMBER().

Example filters

Non-spatial filtering can be used to filter and restrict data using a number of syntax options, some examples of filters that can be defined are as follows:

Example: Class Filters

To find all features in the classes called BUILDING and ROAD with an ID of 500, and all features in a class called FIRE_STATION with an ID of 750:

BUILDING|ROAD{ID==500},FIRE_STATION{ID==750}

Example: Filtering a common attribute

In the following example the attribute HEIGHT is shared across all classes.

HEIGHT == 50 || HEIGHT == 60

All HEIGHT attributes with the value 50 or 60 will be filtered across all Classes.

Example: Excluding classes from filter

In this example the filter checks for all ID attributes with a value of 50. This filter is applied to each class, except for BUILDING.

!BUILDING{ID==50}

Note: For this example, all classes except BUILDING require an ID field or it will not work.

Example: Session Parameter Values

If you have defined a session parameter value you can use these as part of a filter.

{ORGANISATION==$ORG_SESSION_PARAM}

In this instance you are filtering ORGANISATION values that are equal to the defined session parameter value {ORG_SESSION_PARAM}.

Note: You must prefix your session parameter reference with "$".

Note: Spaces in the name of the Session Parameter reference will need to be converted to underscores in the filter. It is also case sensitive.

Example: Date

To find the features across all classes that have a date value after February 2012. The 'yyyy-MM' string supplied represents the date format pattern 1integrate should use to interpret the given date.

DATE_CREATED > date{'2012-02', 'yyyy-MM'}

Filter Syntax

The following tables contain the syntax that can be used to create the non-spatial filters.

Class Filter syntax

Class Filter	Description
No class provided	If no class is preceding values or operators then the filter will run on all classes.
\|	Separated list of classes.
!	Run on all classed except for a specific example.

Constant Values

Constant Values	Description
Numbers	Including whole numbers and decimals e.g. 1, 1.4, 0.12
Strings	Both ' and " can be used to denote strings so you can include the other character in the string itself. e.g. if you want to use " in the string, open the string with ': '"Example"'.
Boolean Values	True/False
Null	No value.

Variables

Variable Values	Description
Object Column Names	The name of the column in the table containing the object.
Session Parameter Values	For more on Session Parameter Values, see Values.

Operators

Supported Operator	Description
Boolean Operators
&&	This is an AND operator.
\|\|	This is an OR operator.
!	This is a NOT operator and negates the proceeding expression.
String Operators
==	Equals to operator.
!=	Not equal to operator.
+	Concatenate two strings
Numeric Operators
>=	Greater than or equal to operator.
<=	Less than or equal to.
>	Greater than operator
<	Less than operator.
==	Equal to operator.
!=	Not equal to operator.
+	Add two numerical values.
-	Subtract two numerical values.
^	To the power of. Use numerical values with this operator to multiply the value by itself.
%	Modulo operator.
*	Multiplication operator.
/	Division operator.

Functions

Function	Description
Numeric Functions
min(x, y)	Return the minimum of 2 numbers.
max(x, y)	Return the maximum of 2 numbers
round(x)	Return the number rounded to the nearest whole integer.
floor(x)	Return the floor of the number (nearest whole integer, rounded down)
ceil(x)	Return the ceiling of the of the number (nearest whole integer, rounded down)
clamp(x, y, z)	Return first number clamped between second and third number.
String Functions
contains(string1, string2)	Return true if first string contains the second.
remove(string1, string2)	Return first string with the second string removed from it.
replace(string1, string2)	Return first string with all instances of second string replaced with third string.
Casting Functions
date(string1, string2)	Parses the first string as a date with the second string supplied representing the date format pattern 1Integrate should use to interpret the given date. For use in timestamp attribute comparisons. Note: Date formats are defined using Java date formats e.g: `ddMMyyyy`
string(x + y + z)	Return a string of the combined total of the parsed numbers. e.g. string(1+2+3) returns “6” as a string. For use in string attribute comparisons.
number(x + y)	Return the input concatenated as a number. e.g. number('300' + '1') returns 3001 as a number. For use in numerical attribute comparisons.
