Connecting Network Graphs
Network graph connectivity is defined by setting up an Action using Built-in Operations built-in operations.
A network graph is defined in two parts, which must be performed in order using a sequence:
-
Define the objects within the network graph (using the add_position and remove_position built-in operations)
-
Set up the connections within the network graph (using the connect_positions and disconnect_positions built-in operations)
Note: You can add and connect features which already exist in the network graph, but an error occurs if you try to connect or disconnect features which have not yet been added. If you remove a feature from the network graph, you do not need to disconnect it first.
Spatial relationships are used to define how the points and lines interact (e.g. touch, overlap, or cross). In a network graph constructed from point and line features, the points become nodes and the lines are the connections between the nodes.
You can construct multiple network graphs in 1Integrate. Although Rules are run against all network graphs, each is reported separately.
Note: The Connectivity Network system class allows you to select network connectivity attributes in a Rule or Action (see Classes and Attributes).
Actions can be created in many ways to achieve the same network graph connectivity. Labels and multiple Actions can be used to connect a network graph in stages.
- See One-way Road Network for an example of a network graph that can be constructed using two methods.
- See Creating a Transport Network for an example of a network graph constructed in stages.
Line Networks

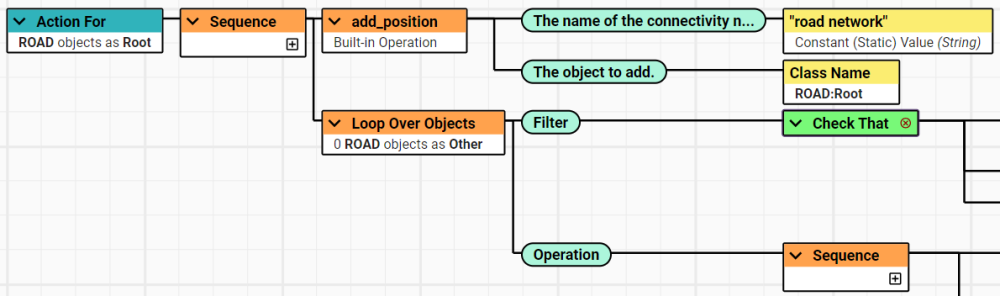

In the example below, the points of contact become nodes in the network graph, with road sections as the connections.
Line and Point Networks
The following example shows how a network graph of valves (points) and pipes (lines) might be defined.
