Process Submission

    The submission will work through the tasks and update as it completes them. For smaller Data Sets there may be little to no noticeable time between the first task starting and all tasks running to completion.

  1. At this point you don't need to do anything until it's run to completion. However, you may select an AutomationClosed Submissions with Automation set up will run to the requested stage without further interaction. method to allow the submission to complete on its own or to notify you after it has reached a set stage.

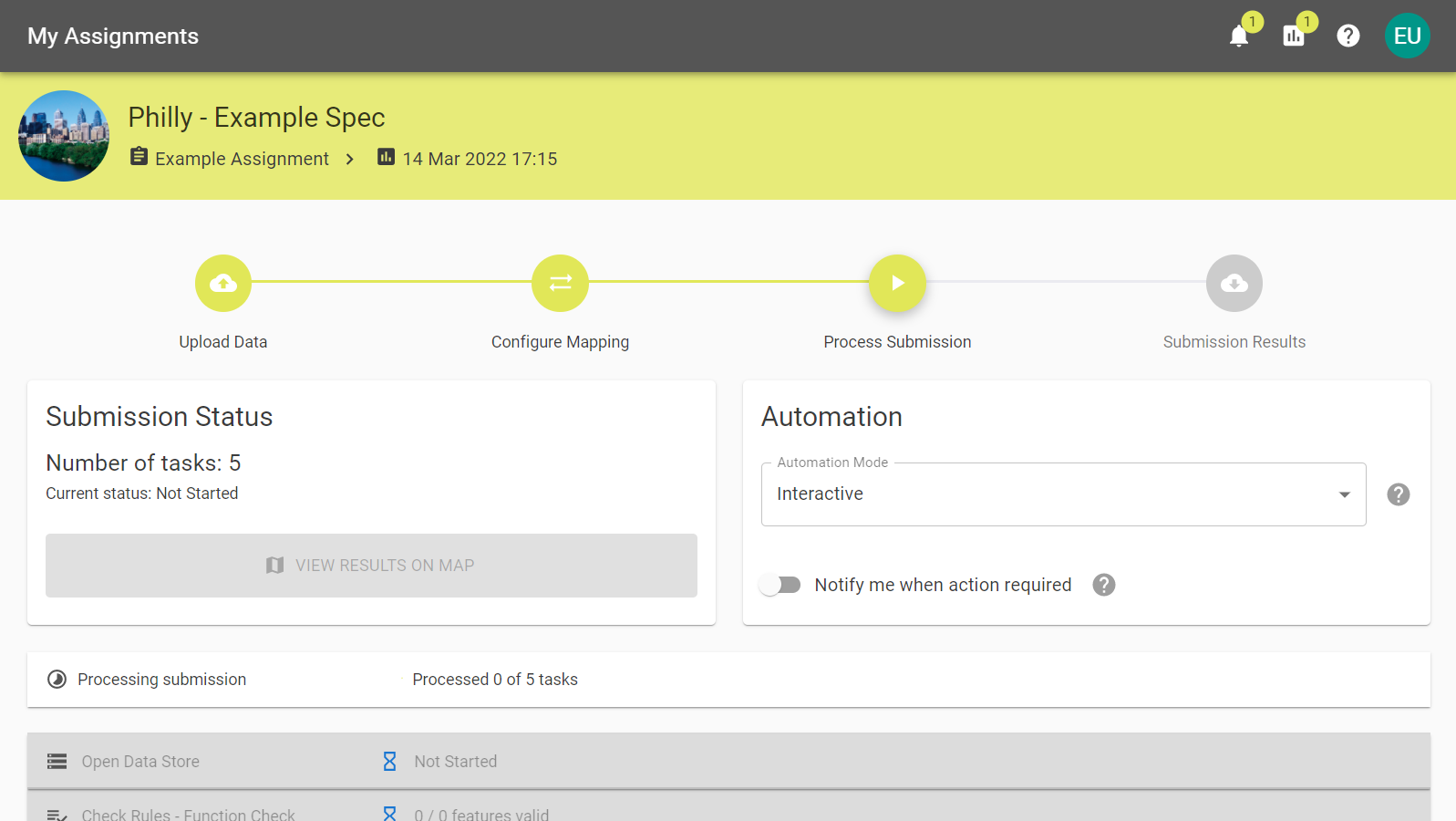

    2. Process Submission stage with an in-progress submission.
  2. You can select tasks to expand and see a more detailed summary of completed actions. You can do this with task that have been completed even if it's still running.

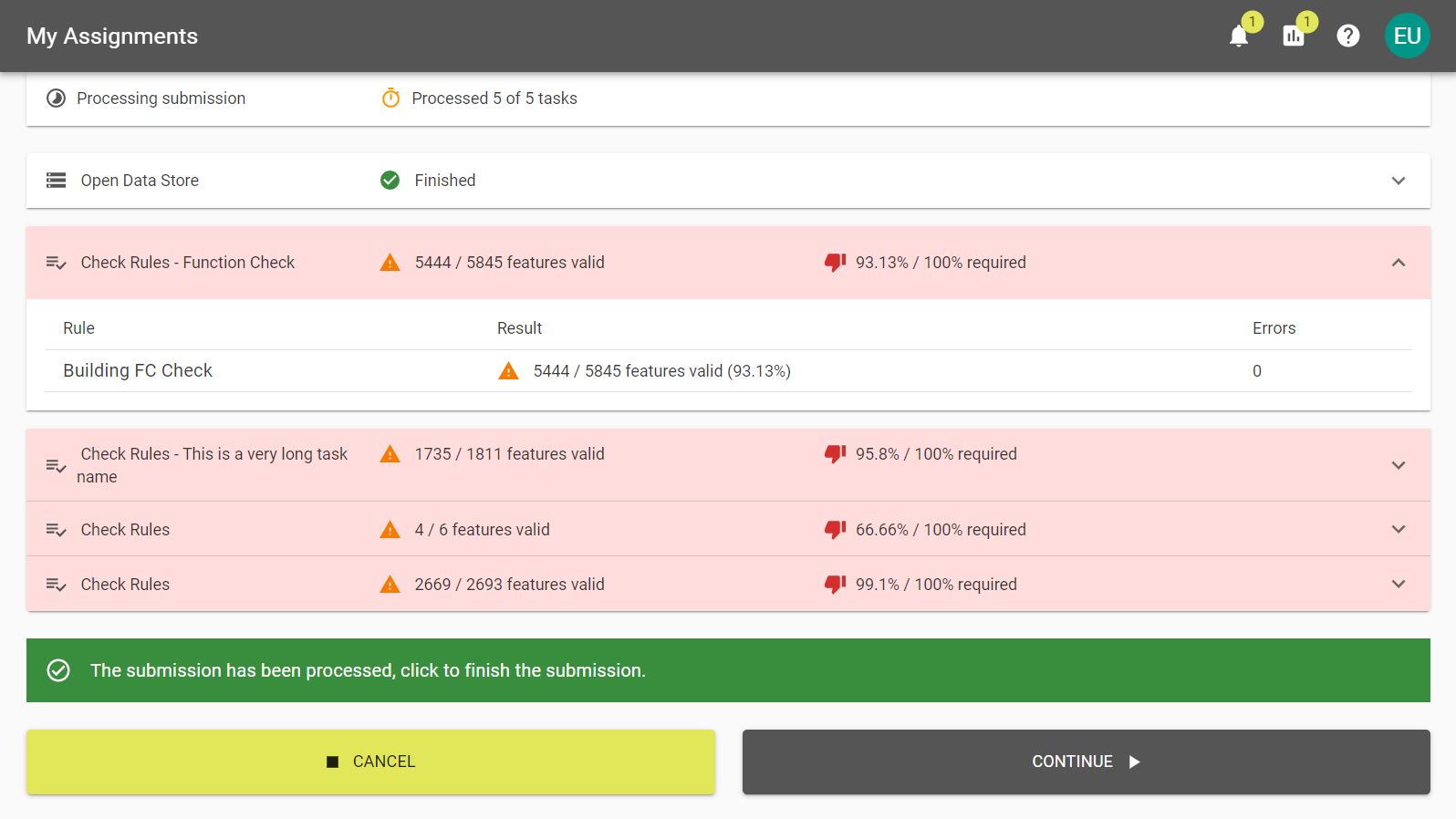

    3. A task has been expanded to see details in the Process Submission stage.
    An expanded task
  3. For spatial data, you can view the results on a map.
    4. View Results on Map button

    ClosedView Results On Map

    Spatial Data can be viewed on a Map and only during the Process Submission stage.

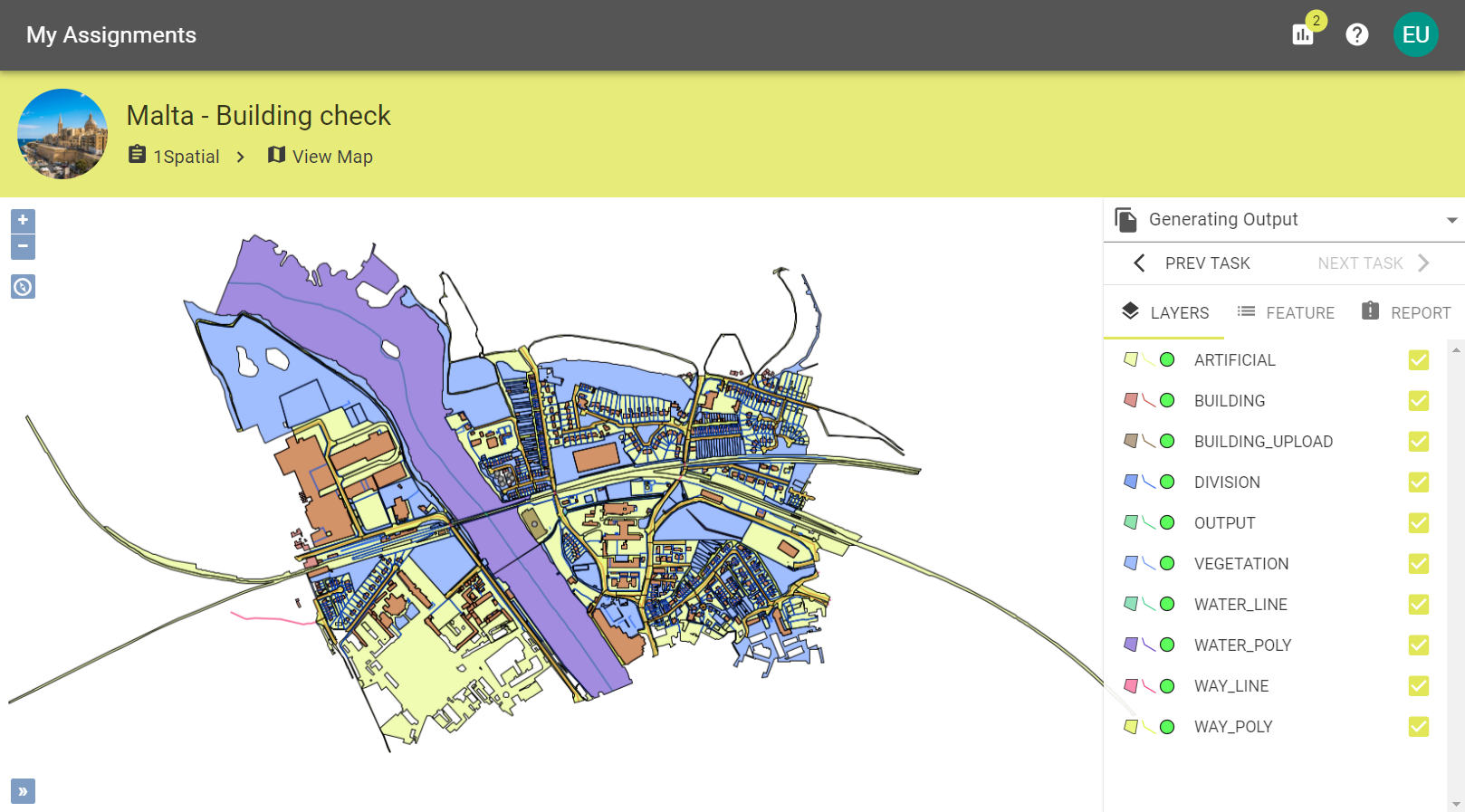

    Example of spatial data displayed in the Map Viewer
    1. Tasks can be stepped through by clicking Prev Task, Next Task, or the drop down menu above to see how the spatial data is represented during each task.

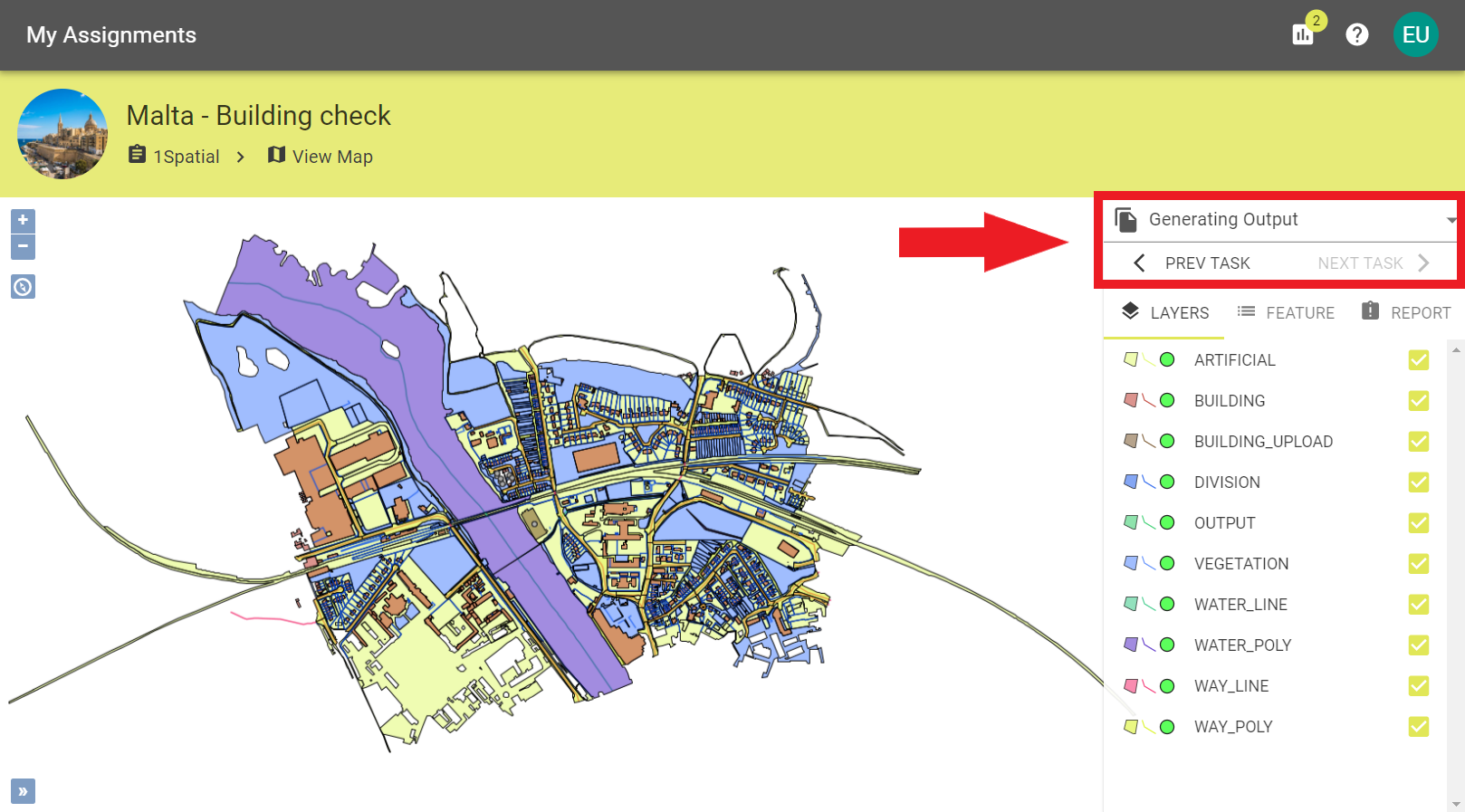

      2. The Map Viewer tasks tabs

    2. The Map viewer has three tabs:

      • Layers

        The Layers tab allows you to toggle the layers on the map.

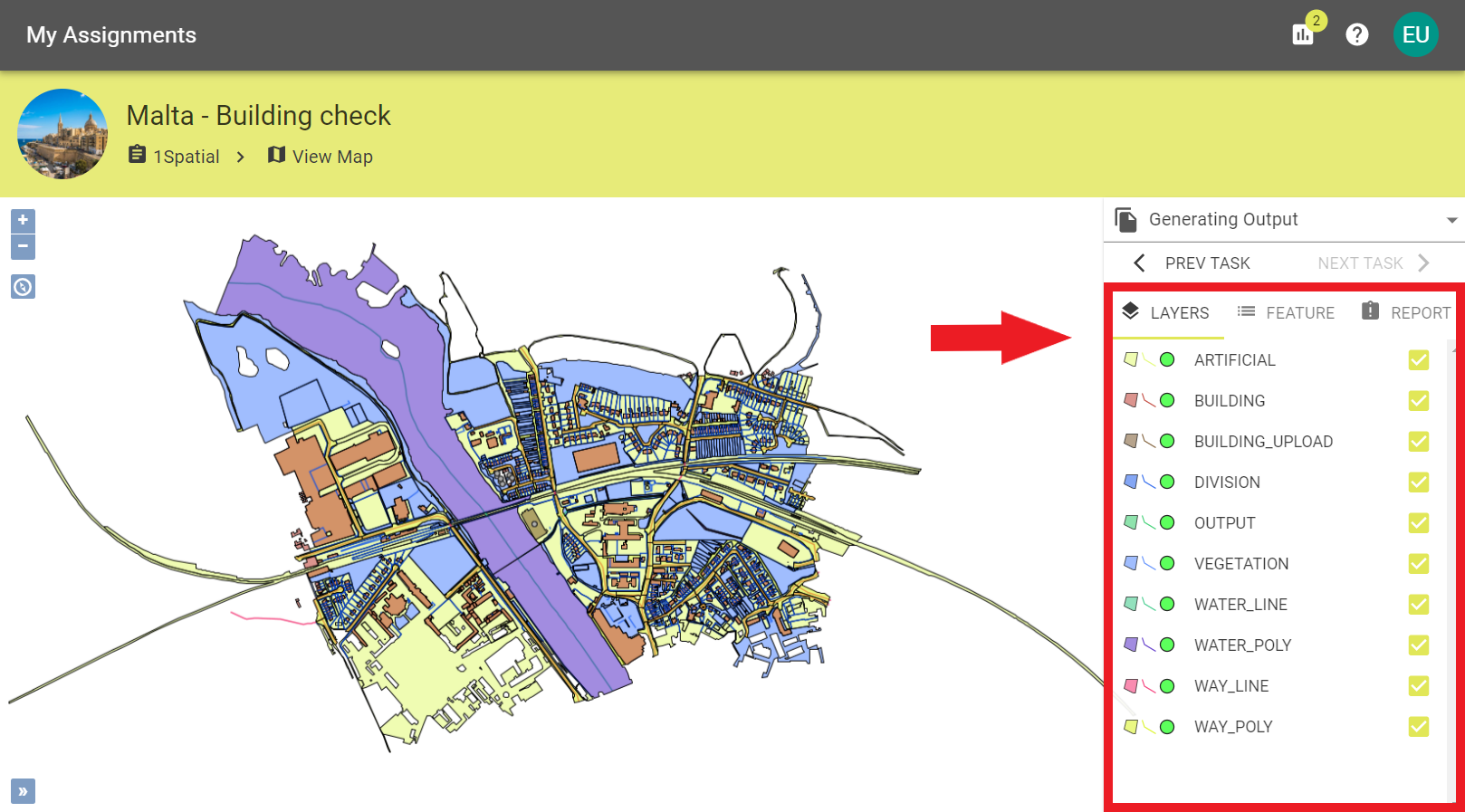

        The Map Viewer layers pane

      • Feature

        The Features tab allows you to select a specific feature from an area you selected on the map and see the feature's details. This helps select specific features when there are overlapping geometries.

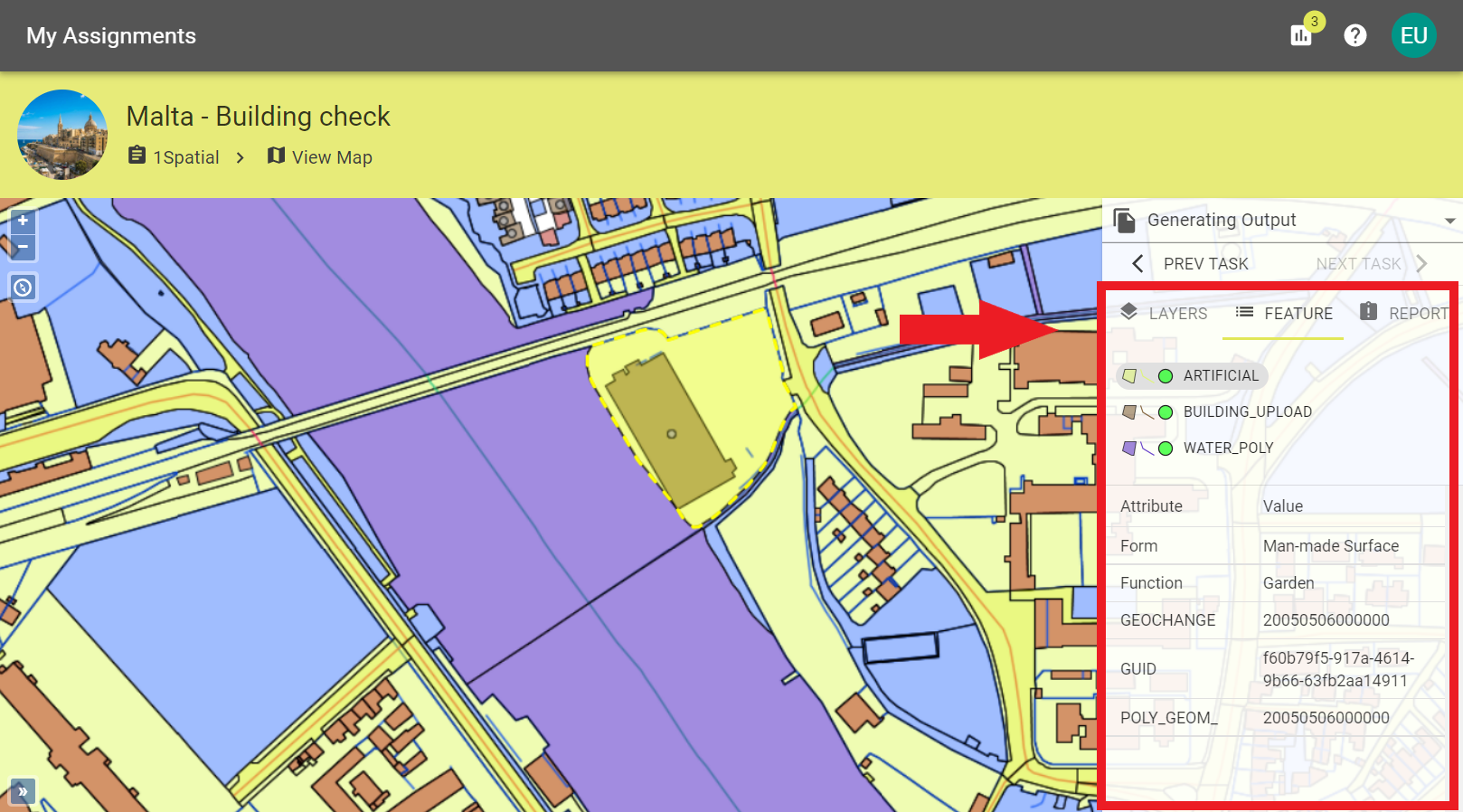

        The Map Viewer feature pane

      • Report

        The Reports tab allows you to view the object report for a task if a report is generated.

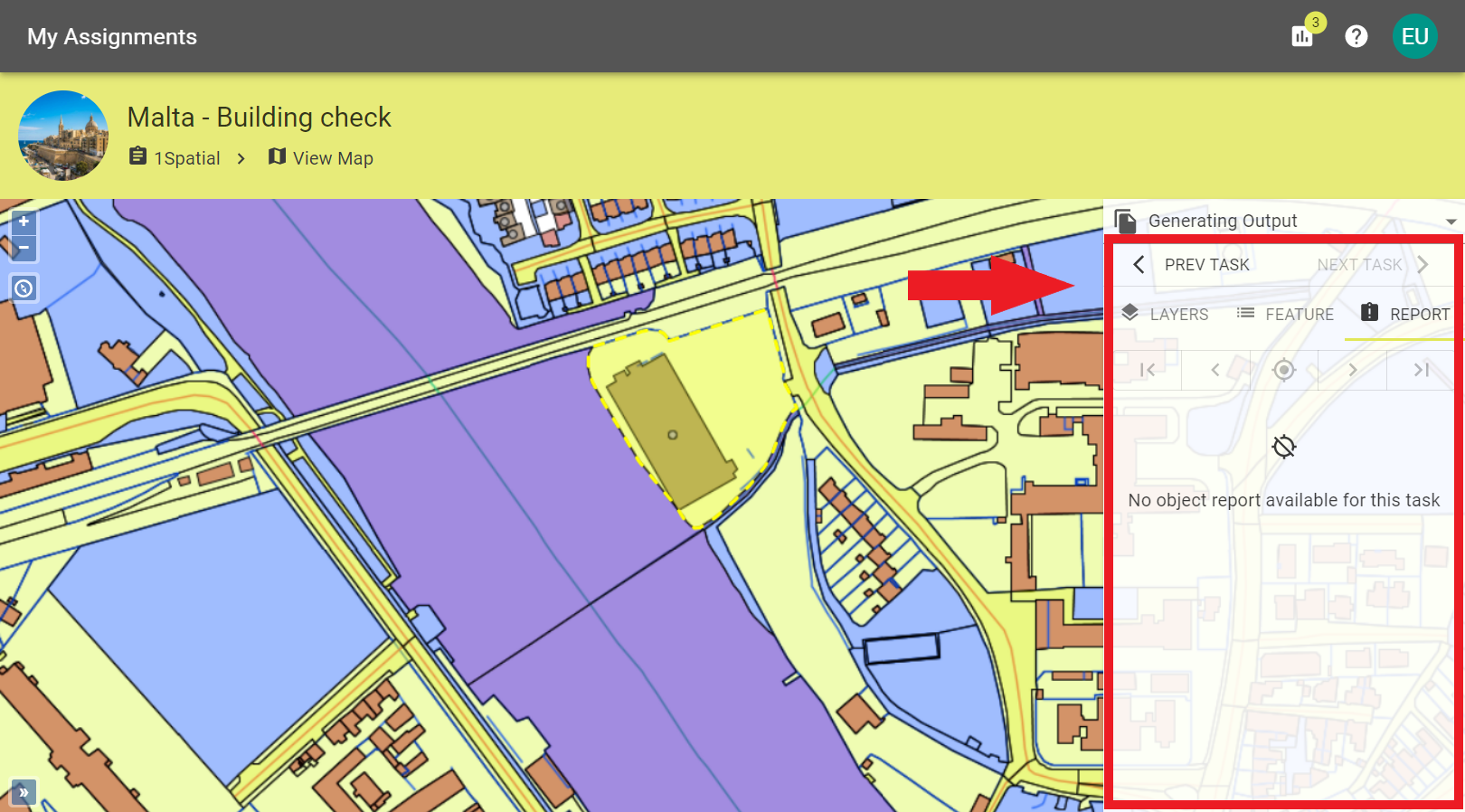

        The Map Viewer report pane

    3. To Navigate the Map you can use:

      • Left click to select a Feature.
      • Left click and drag to move around the map.
      • Scroll the mousewheel or pinch your fingers together/apart on a touchpad to zoom in/out.
      • Clicking the Zoom In icon or the Zoom Out icon will also zoom in our out.
      • Click the Recenter icon to recentre the map.
      • Click the Overview icon to open an overview map that shows the where on the map you are zoomed in.

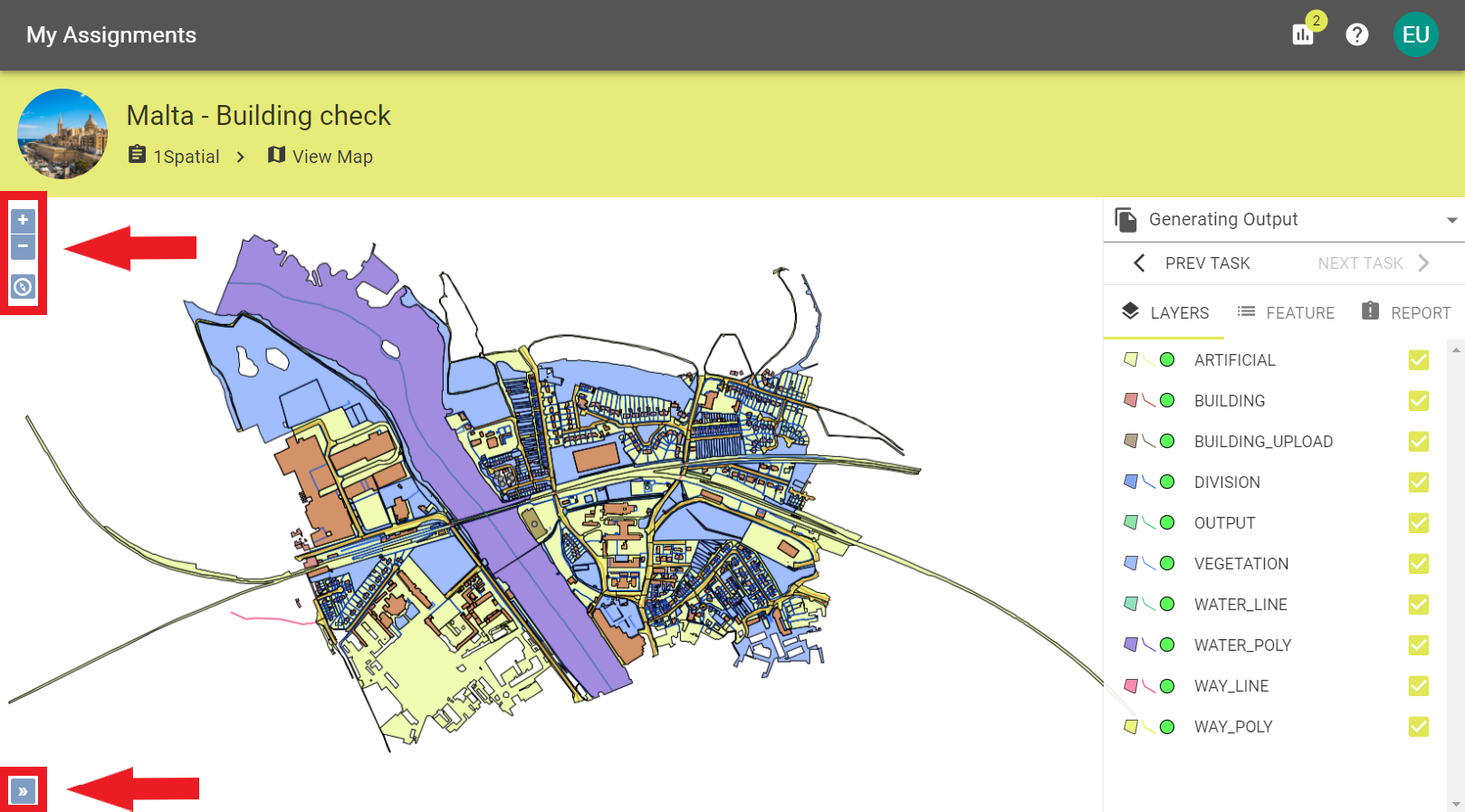

      4. Map Viewer with buttons highlighted.

    4. To exit the Map Viewer, click the back button in the browser or click 1Spatial on the breadcrumbs.

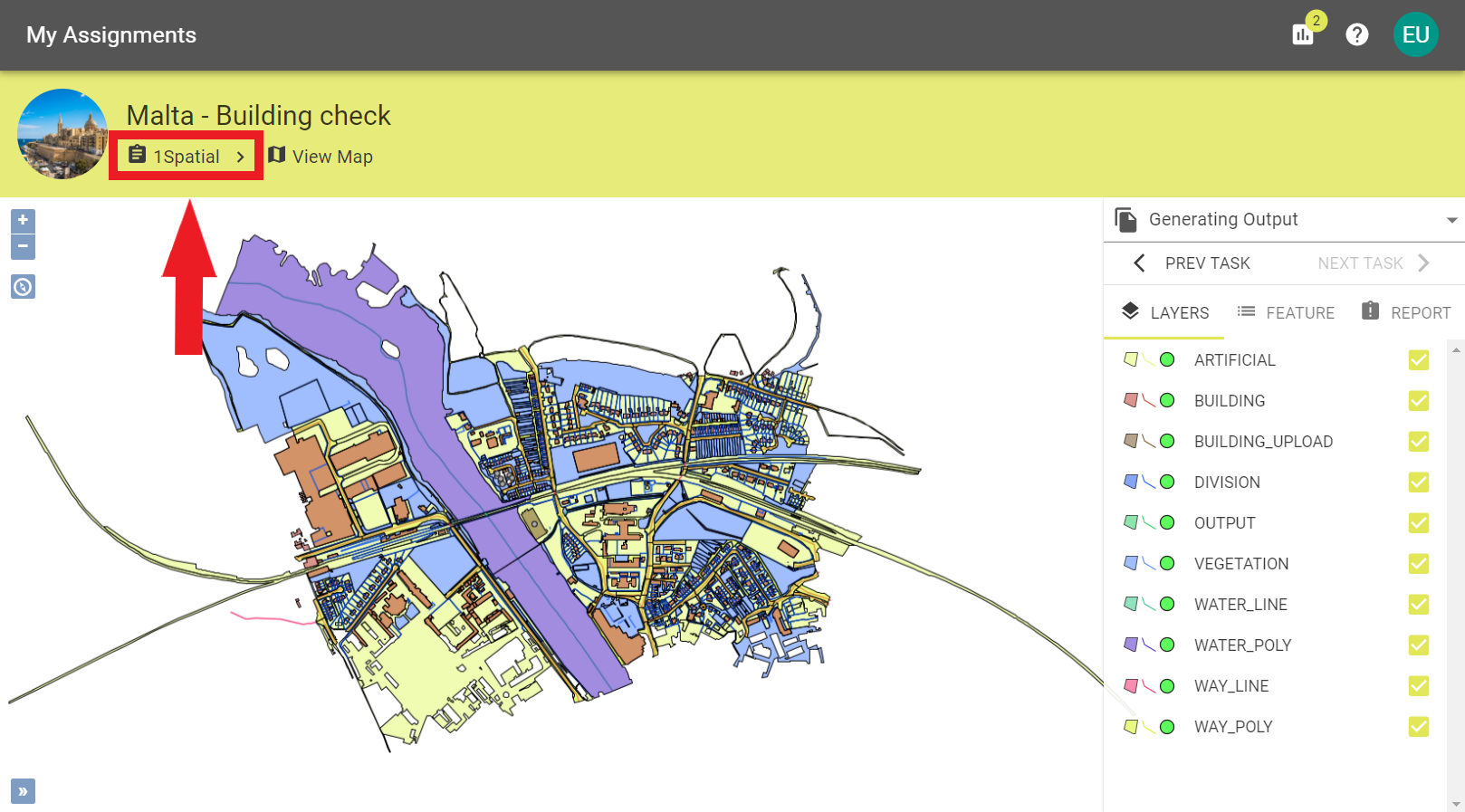

      Map Viewer with breadcrumbs highlighted.
  4. Select Continue to complete the submission.
    5. Continue button
