Templates

The schema, style, and topology can be saved as a template, then used to create a new project.

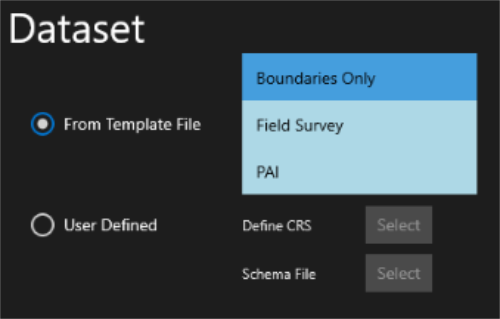

Multiple templates available for a new project

     Note: Any data in the project is also saved to the template, so ensure that you create templates from projects that contain no features.

A template must be in place when opening jobs in the Worklist to ensure they are all using the same settings (see 1Spatial Management Suite Worklist).

     Note: You can view the Templates being used on a Project on the Project Properties pages. See Managing Projects for more details.

ClosedSave the current project as a template

  1. From the Projects page, right-click on a project to select it and display the lower app bar.

  2. Click Save as Template.

    Save as Template icon.

  3. Enter a name for the template and browse to the folder in which you want to save it.

  4. Click Save.

ClosedImport a template

  1. From the Projects page, right-click (swipe up on touchscreen), or select the in the bottom right to display the lower app bar.

  2. Click Import Template.

         Note: You can have multiple templates, but they must be imported individually. If you import a template with the name as an existing template, you will be prompted to rename.

    The Import Template icon.

  3. Navigate to a template file and click Open.

    The template is now installed as the current 1Edit template. Any GML that is opened using a template and all jobs that are downloaded using the worklist will now use this template.

ClosedDelete a template

     Note: This will leave 1Edit with no current template; you will not be able to use the Worklist until you import another template.

  1. From the Projects page, right-click (or swipe up) to display the lower app bar.

  2. Click Delete Template.

    The Delete Template icon.
  3. Click Delete to confirm.
