Map Viewer

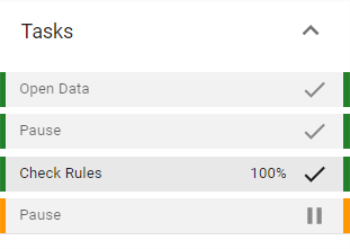

Selecting a Task from the Tasks list will load the Map with the data in the state it was when the task finished. Stepping through the Tasks in order is useful for debugging issues and for showing the evolution of the data.

Each feature, is displayed as a separate Layer and can be edited on the map. Layers can be dragged up or down the ordering to sit on top of or below other features on the map.

Reports, which include reported features, non-conformances and errors, will also display as a Layer on the list.

     Note: The Reports layer will persist at the top of the Layers list and cannot be moved. It can be hidden and styled in the same way as all other layers. The styling of the map pins representing Non-conformances cannot be changed.

Clicking on the colour indicator next to a layer opens the colour picker, which allows you to apply a custom colour to that feature.

You can save or load a preferred style by downloading or uploading a JSON file containing the styling:

• Click the Download Layers Styles icon to download a JSON file containing the styles currently in use.

• Click the Upload Layers Styles icon to and select a JSON file to upload that contains the layer styles.

Example Layer Styling JSON

Example Layer Styling
{
  "layers": [
    {
      "colour": {
        "red": 128,
        "green": 125,
        "blue": 55
      },
      "layerName": "ROAD"
    },
    {
      "colour": {
        "alpha": 255,
        "blue": 110,
        "green": 197,
        "red": 110
      },
      "layerName": "BUILDING"
    }
  ],
  "hidden": [],
  "wireframe": []
}

Layers can be hidden and unhidden individually or applied to all layers with the Hide Layer and Show Layer icons.

Each layer can alternatively be rendered as a wireframe, toggled with the Render all layers as wireframe and Render filled icons

The Reports tab shows non-conformances, and is only visible as a layer in Tasks that contain con-conformances or reports. For further detail see Map Viewer Reports.

When clicking a feature on the map, the Object Details panel will open, listing the details of the selected feature. If the object occupies the same space as another object, there will be a dropdown menu at the top where you can select another feature that has overlapping geometry.

Clicking the magnifying glass icon next to Geometry will display a popup with the geometry information.

The map icons in the bottom right of the interface perform the following actions:

Icon	Description
Reset zoom and rotation	Resets the map view to its default view.
Measure distance	Used to measure distance between two or more points on the map. Clicking on the map creates a point. A line is drawn, showing the distance to the mouse. Click again to make additional points, recording the distance between those points. Double-click on the final point or press Esc to stop creating new measurements.       Note: The units of measurement used in the measuring tool are always metres, regardless of the source data..
Pick point	Click a point on the map and it will copy the co-ordinates to your clipboard.
Fly to point	Enter X and Y co-ordinates and click Fly to centre the map view on the location entered.
Bookmark	Open the Bookmarks dialog. From here: Create a new bookmark with Add Bookmark. Focus the map on an existing bookmark with the Focus on Bookmark icon . Delete an existing bookmark by clicking the Delete icon .
Zoom in	Zoom the Map in.
Zoom out	Zoom the Map out.
